High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine

Name: High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine
Brand: WADJAY
Price: 1 USD

China High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine wholesale

Brand Name : WADJAY

Model Number : Wheel CNC Lathe

Certification : CE,ISO

Place of Origin : china

MOQ : 1 set

Payment Terms : D/P, Western Union, D/A, L/C, MoneyGram

Supply Ability : 20 sets/month

Delivery Time : 5-8 working days

Packaging Details : plywood case strong

Max. Swing Diameter : 22'', 660mm

Max. machining length of the workpiec : 500

Machining diameter of the wheel : 24"

Section of turning tool : 25X25

Range of spindle speed : 150~2800 rmp

Dimension(L*W*H) : 1900*1400*1750mm

Contact Now

Condition:New
Type:Horizontal
Dimension(L*W*H):1900*1400*1750mm
CNC or Not:CNC
Automatic Grade:Automatic
Max. Swing Diameter:22'', 660mm
Weight:1300kg
Max. machining length of the workpiec:500
Machining diameter of the wheel:24"
Detection method:Probe (or infrared scan)
Tool holder form:Fixed turret,Electric turret (optional)
Clipping method:Three-jaw chuck
Function:Repair rim wheel
Section of turning tool:25X25
Range of spindle speed:150~2800 rmp

Product Description

High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine

Technical Parameter

Item	Unit	WCH6160
Max Wheel Diameter	inch	22″
X-axis maximum stroke	mm	320
Main motor power	kw	3
Rial Width	mm	260
Max. workpiece length	mm	500
Wheel measuring direction		X,Z
Measuring Tool		Laser or probe (optional)
Measurement method		Point measurement and quick scan
Program optimization		Manual and automatic
Number of wheel processing programs	rows	100000
Wheel processing		Surface, rim
Mchining accuracy	um	IT6~IT7
Spindle speed		Factory setting 150~2800
Fast-moving feed	mm/min	X :5000 Z :8000
Repeat accuracy	mm	X :0.01 Z :0.015
Turret form		Fixed turret,Electric turret (optional)
Section of turning tool	mm	25×25
Machine size(L×W×H)	mm	1900×1400×1750
Net weight	kg	1300

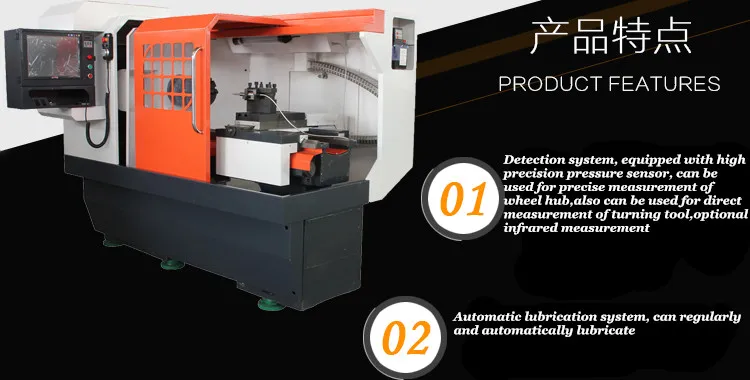

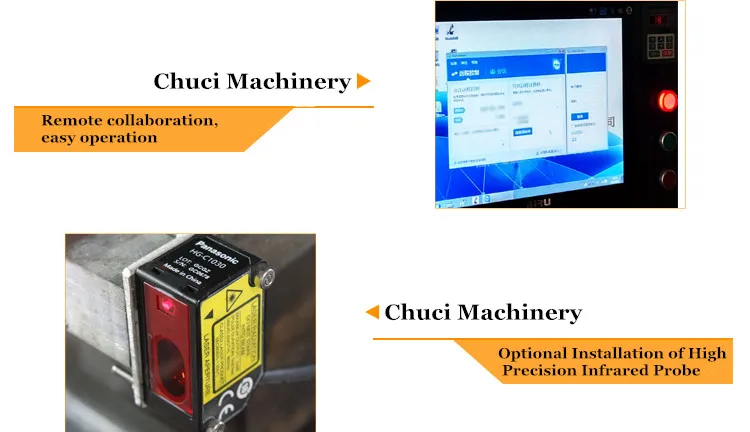

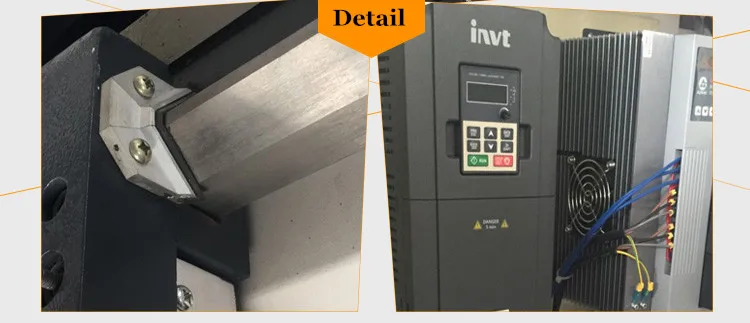

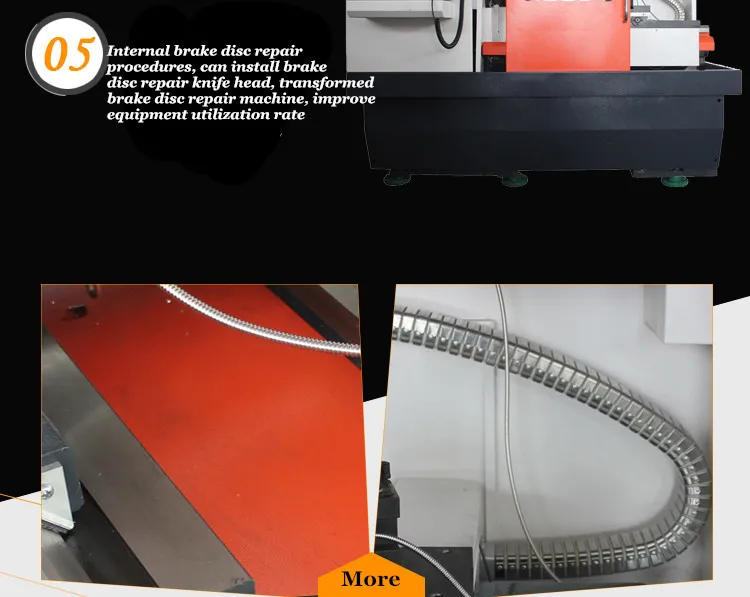

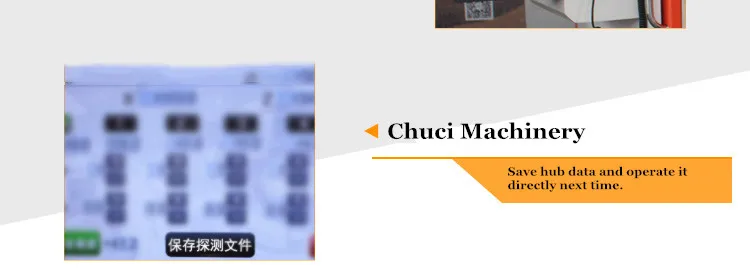

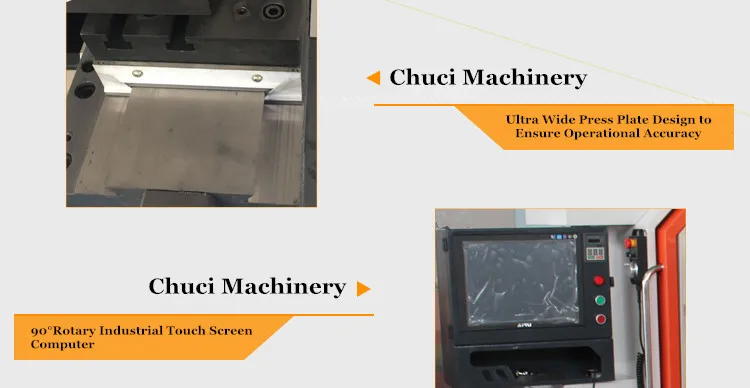

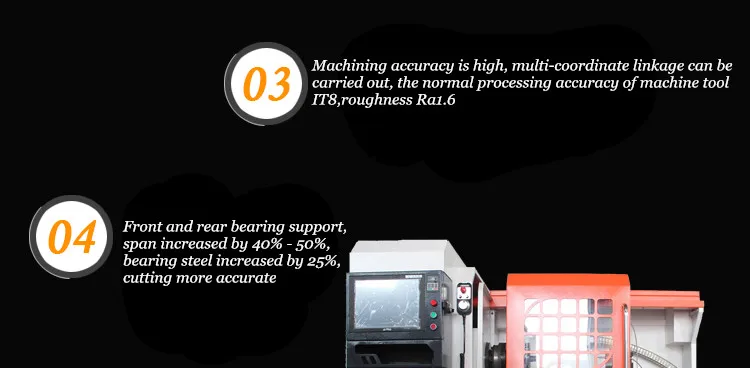

Detailed Images

High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine

Sample Accessories

High Precision Diamond cut Alloy Wheel CNC Lathe Machine Cutting Machine
